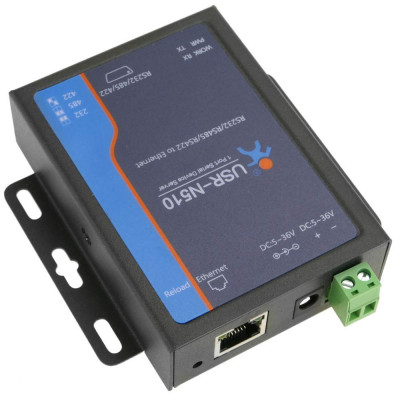

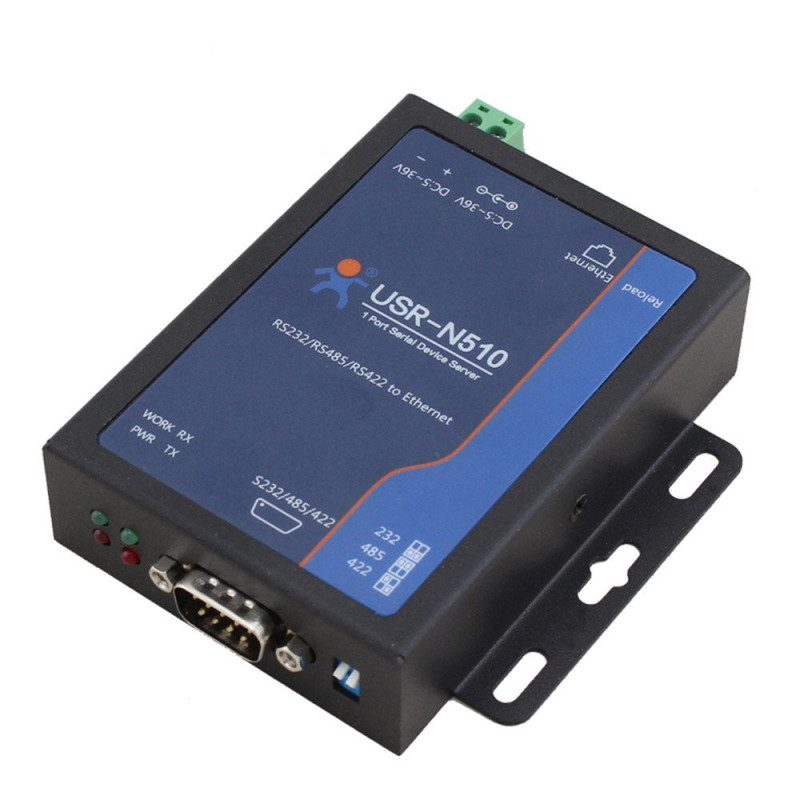

USR-N510 Convertitore seriale RS232 RS422 RS485 A Ethernet TCP/IP

Equipment for converting TCP / UDP data to RS232, RS422 and RS485.

Cortex-M4 chipset with easy use, low price, low power, high speed and high stability. Mounted in metal case and with power supply.

Technical specifications:

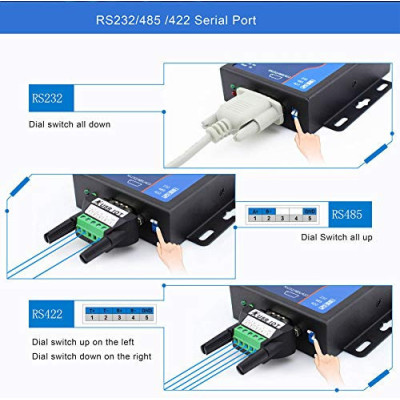

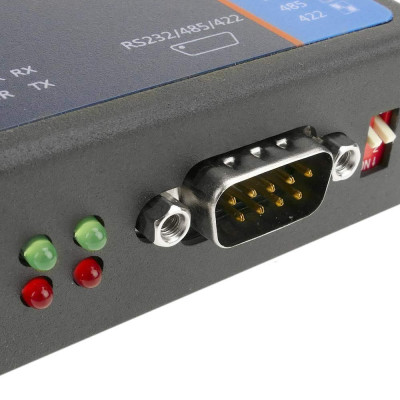

- It has a serial port (RS232, RS422 or RS485).

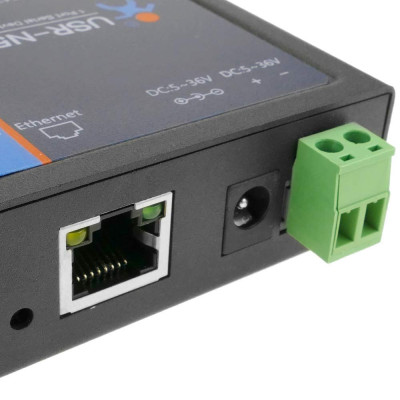

- 10/100 Mbps interface with automatic detection.

- Auto MDI / MDIX compatible. You can use a crossover or parallel cable.

- Operating TCP server, TCP client, UDP, UDP server.

- Parameter configuration through a serial or network port.

- Level 5.0V RS232 / RS422 / RS485.

- Virtual serial port

- Mechanism to ensure that the connection is secure.

- In UDP mode, broadcast packets are not allowed.

- Compatible with gateways, switches and routers.

- You can work in LAN and WAN (internet or external network).

- RS232 transmission distance of 15m.

- RS485 transmission distance of 1000 m.

- 32-bit ARM CPU inside.

- 2 KV protection.

- Isolated electromagnetic

- Transmission speed of the serial port: from 300 to 230,400 bps.

- Configuration up to 3 Mbps.

- Network protocol: Ethernet ARP, IP, UDP, TCP, ICMP.

- Support Modbus RTU in Modbus TCP.

- Software tool: TCP / UDP configuration and test software.

- Configuration method: RS232 or via Ethernet (software available for download).

Package Contents

- USR-N510 converter

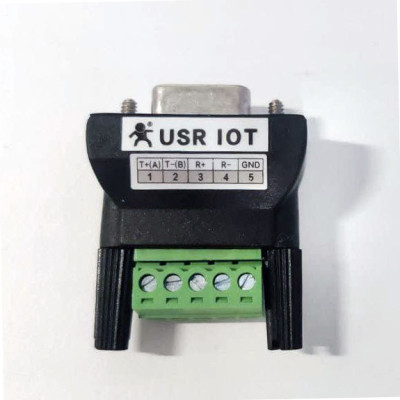

- DB9 screw terminal adapter

- Serial cable M-M 1,5 m

- RJ45 cable 1,5 m

- Power supply:

--- Input 110-240V 50/60 Hz - 0.2A

--- Output 5VDC - 1A

Links

User Manual:

https://www.usriot.com/support/downloads/USR-N510-User-Manual-V108.html

Manufacturer's website:

https://www.usriot.com/products/1-port-serial-to-ethernet-converter.html
