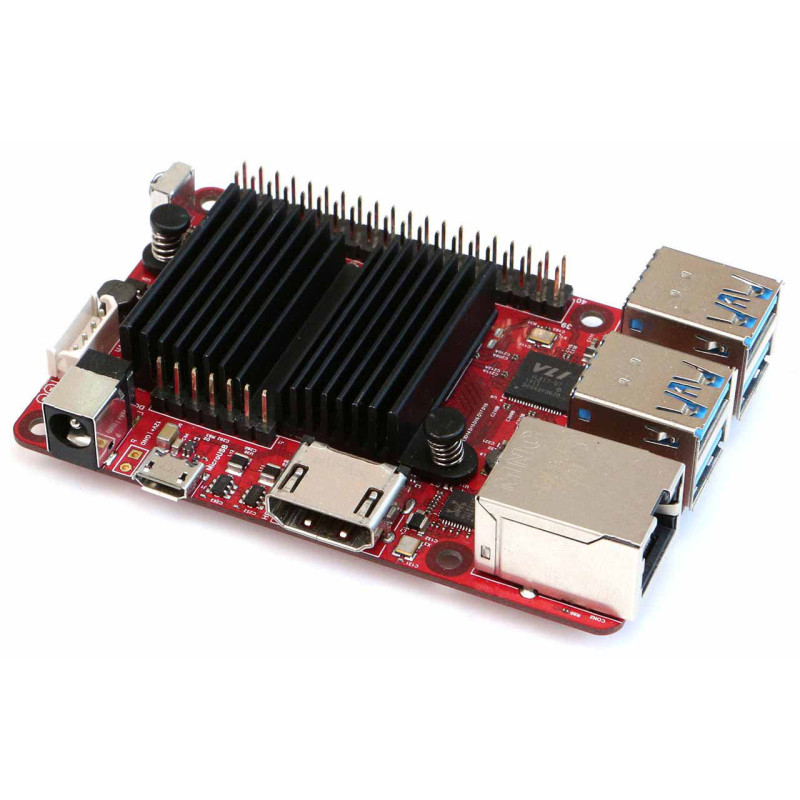

Odroid C4 Computer Card with Cpu Cortex-A55 2.0 Ghz 4Gb Ram

Non disponibile


100% Availability


Shipping in 48/72 h with Express Courier


Worldwide Shipping

ODROID-C4 is a more energy efficient and faster next generation single board computer than ODROID-C2, introduced over four years ago as the world's first affordable 64-bit ARM computer.

Main Features

CPU Cortex A55 @ 2.0 Ghz
Ram DDR4 4 Gb
MicroSD slot
eMMC connector ( optional)
GPIO 40 Pin
Video Output 1x HDMI
4 Usb 3.0 ports
Gigabit Lan Card Realtek RTL8211F

The main CPU of the ODROID-C4 is built with a quad-core Cortex-A55 cluster with a new generation Mali-G31 GPU. The A55 cores operate at 2.0Ghz with no thermal limitation using the stock heatsink which allows for a sturdy and quiet computer. Multi-core CPU performance is about 40% faster and system DRAM performance is 50% faster than ODROID-C2.

A- CPU (Amlogic S905X3) H- 2 x System LED indicators
B- DDR4 memory (4GiB) I- 1 x UART for system console
C- 4 x USB 3.0 host ports J- 1 x IR receiver
D- 1 x RJ45 Ethernet port (10/100/1000) K- 40 x GPIO pins
E- 1 x HDMI 2.0 L- 7 x GPIO pins
F- 1 x Micro USB 2.0 port (OTG) M- 1 x eMMC module socket
G- 1 x DC power jack (out 5.5mm - in 2.1mm) N- 1 x Micro SD slot

Technical information at WiKi >>
