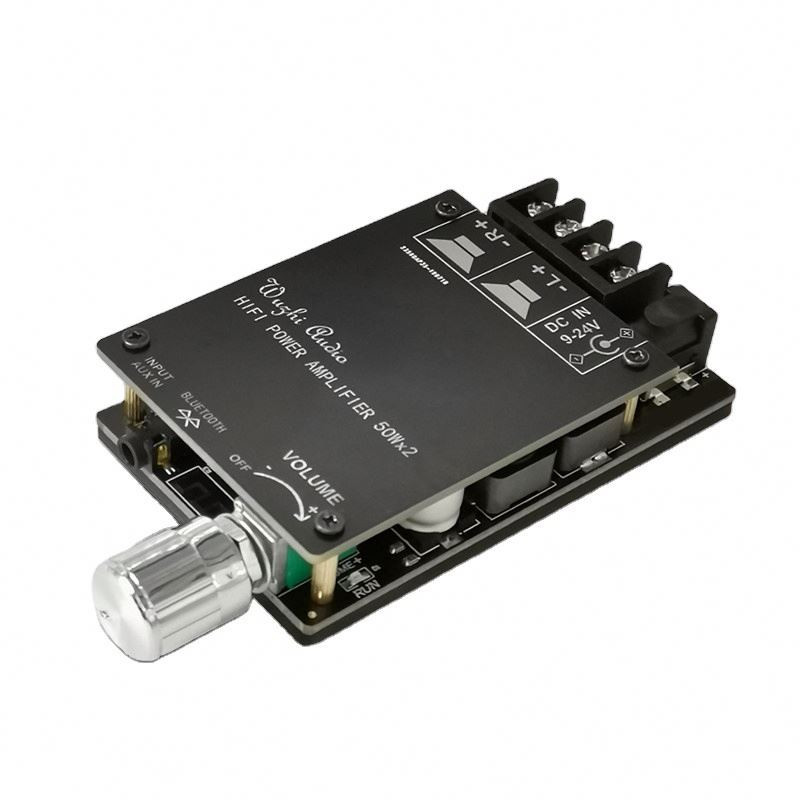

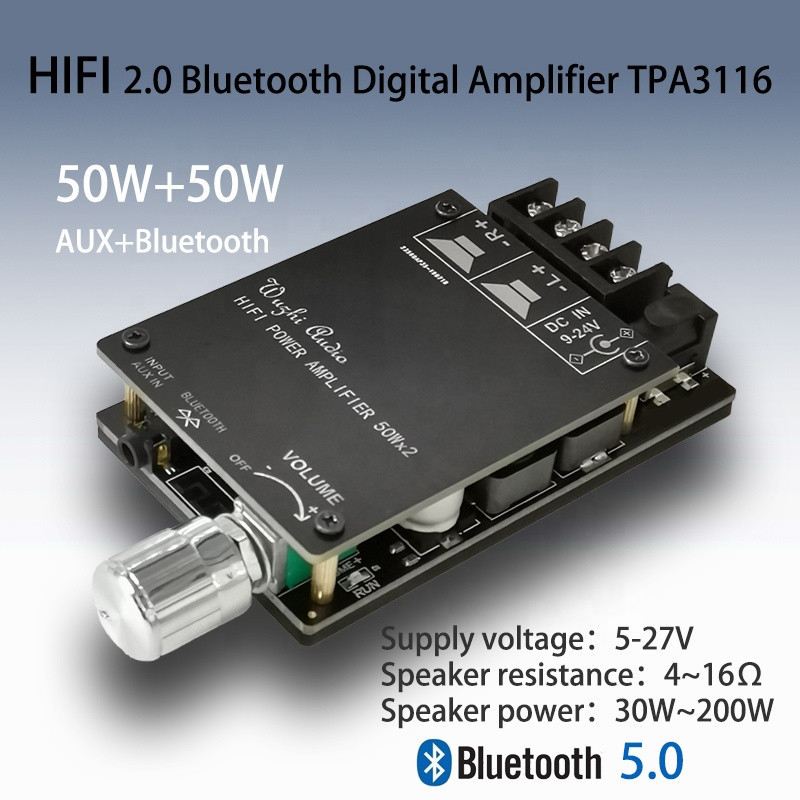

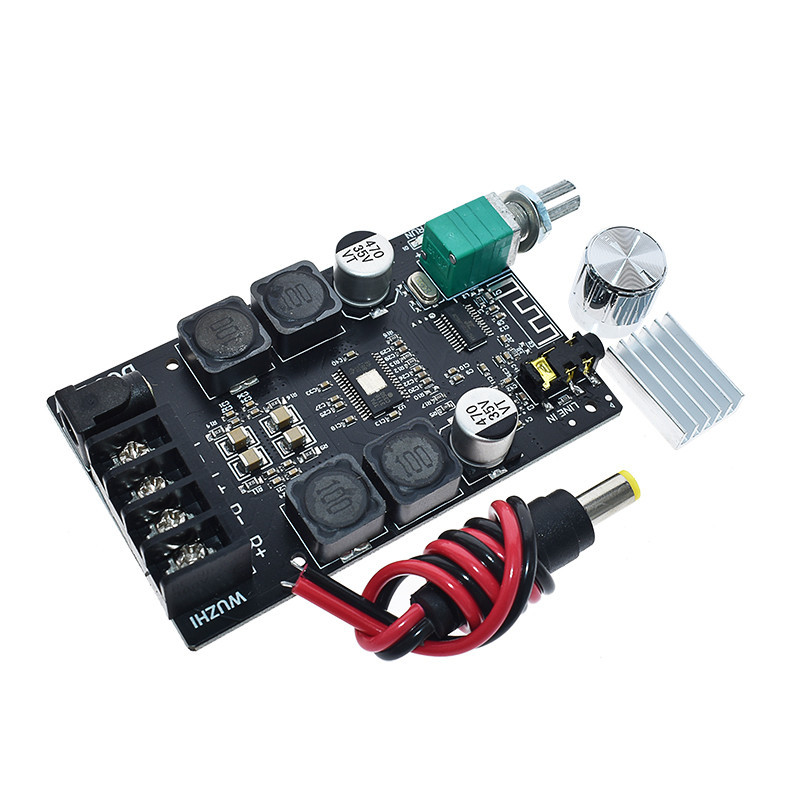

ZK-502C Bluetooth 5.0 Wireless Stereo Audio Amplifier Board 2x 50W 2 Channel

Bluetooth 5.0 amplifier, 50W x 2
Protections: overheat protection and automatic reset, short circuit protection
Dimensions: approx. 55 x 38 x 17 mm.

Version with AUX input from 3.5 audio jack

Specifications:
Model: ZK-502C
Bluetooth version: 5.0
Material: fiberglass panel and electronic components
Dimensions: approx. 55 x 38 x 17 mm
Supply voltage: 5 - 27 V (power supply not included 9/12/15/18/24 V, high power recommended).
Speaker adapter: 30-200 W, 4 O, 8 O.
Number of channels: left and right stereo (stereo).
Bluetooth transmission range: 15 m (without obstacles).
Protection mechanism: self-reset, overheating protection, short circuit protection.
Color: as shown in the image.

It is recommended a power supply of adequate power:
- 9 a power supply 12V: recommended from 2-4 A (8 OHM - 4 OHM)
- power supply from 19 to 24V: recommended 3-5 A (8 OHM - 4 OHM)

A good power supply is linked to the quality of the audio delivered by the speakers that you connect.

If the power supply fails to stay "behind" the speakers, you may have a slightly distorted sound, especially if the speakers are 8-10 cm in size. For example, if the speakers are 2-3 inches, a 12V power supply with 1A power can also be used.

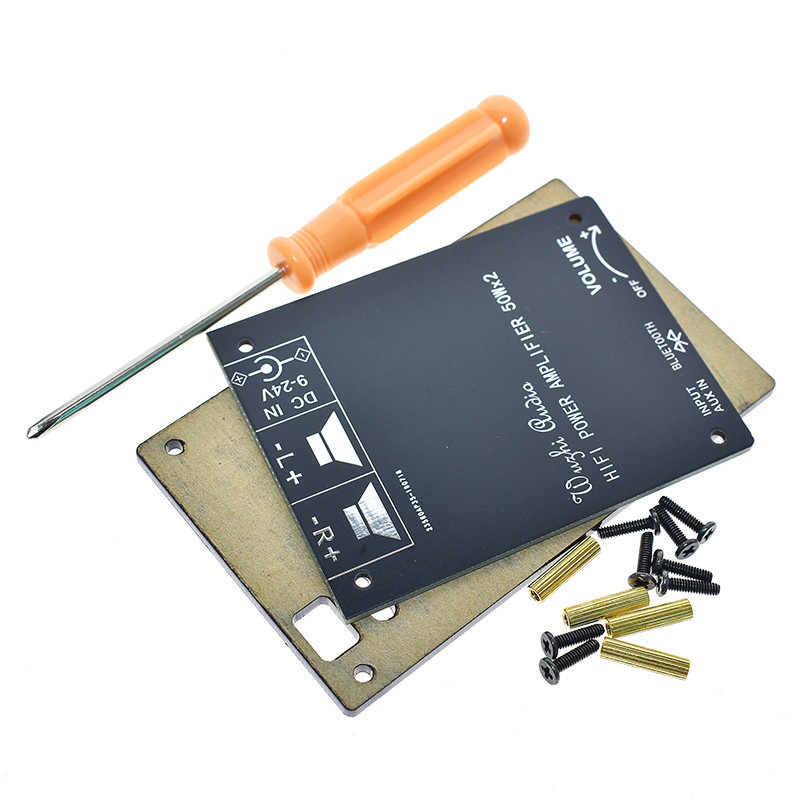

Package contents:
1 - Amplifier ZK-502C
1 - Cover plate and screws
1 - Power jack with cable
