Zero Delay Controller With Harnesses for EDIERRE Pushbuttons

Special version for EDIERRE - INDUSTRIAS LORENZO pushbutton panel with 6,5mm Faston

3D printed Fixing Support RetroK included to position the card on Bartops and Cabinets, Homemade Gamepad
Use ONE controller per seat. By station we mean a Joystick / Buttons Player set The buttons must be connected to PINs B1 to B12, indifferently. The configuration must then be carried out from the menu of the system used, Retropie or Recalbox or other.

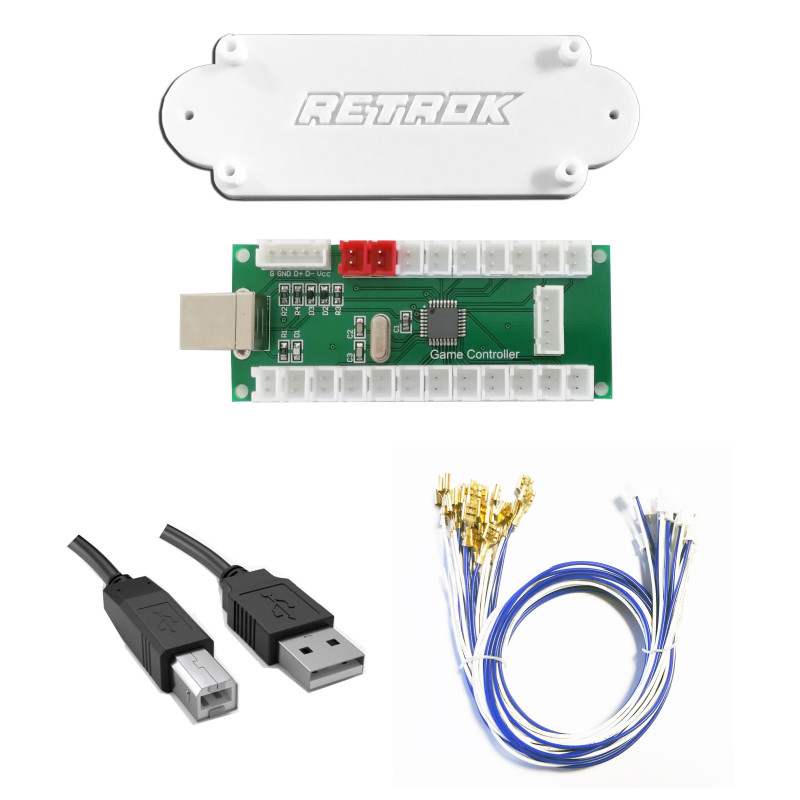

Contents of the Set:

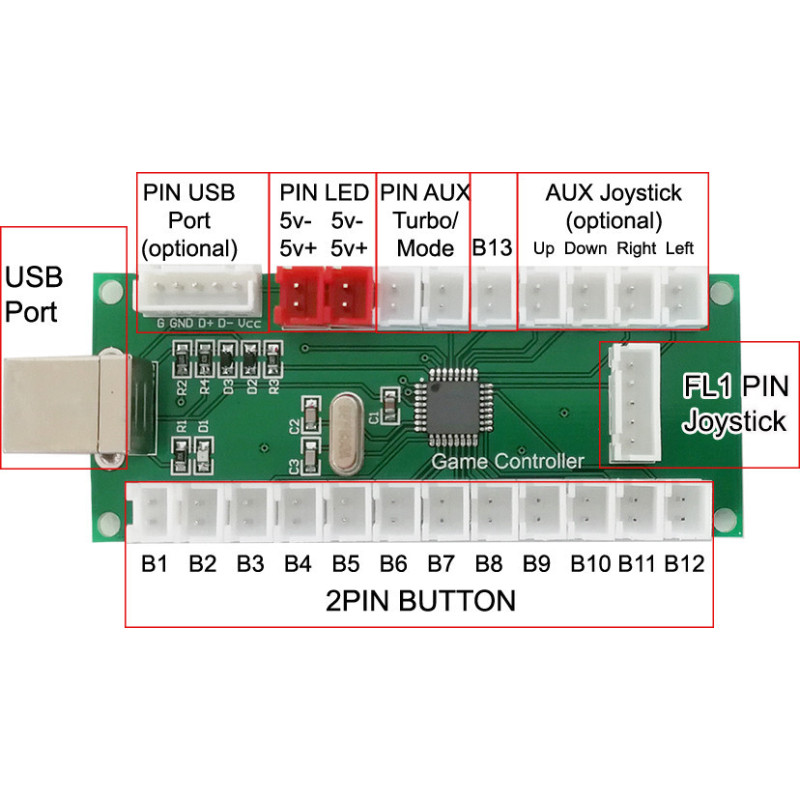

1 Schema of the connection to controller

1 piece - USB Controller Board (Board Encoder Zero Delay) Controller suitable for any operating system, no drivers needed.

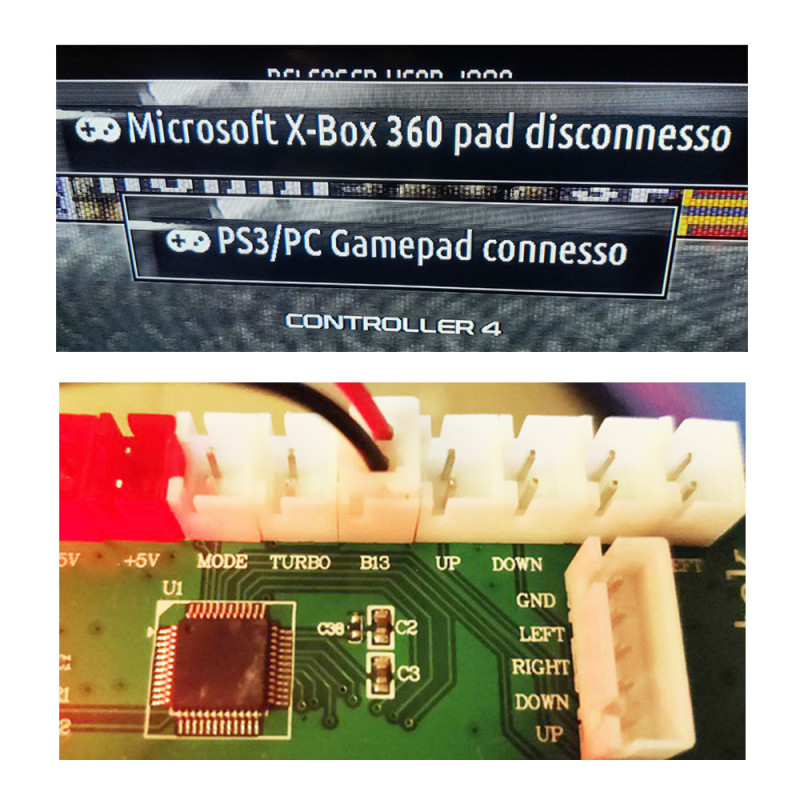

It will be automatically detected by systems Windows and Linux and Raspberry systems with Retropie Recalbox Batocera

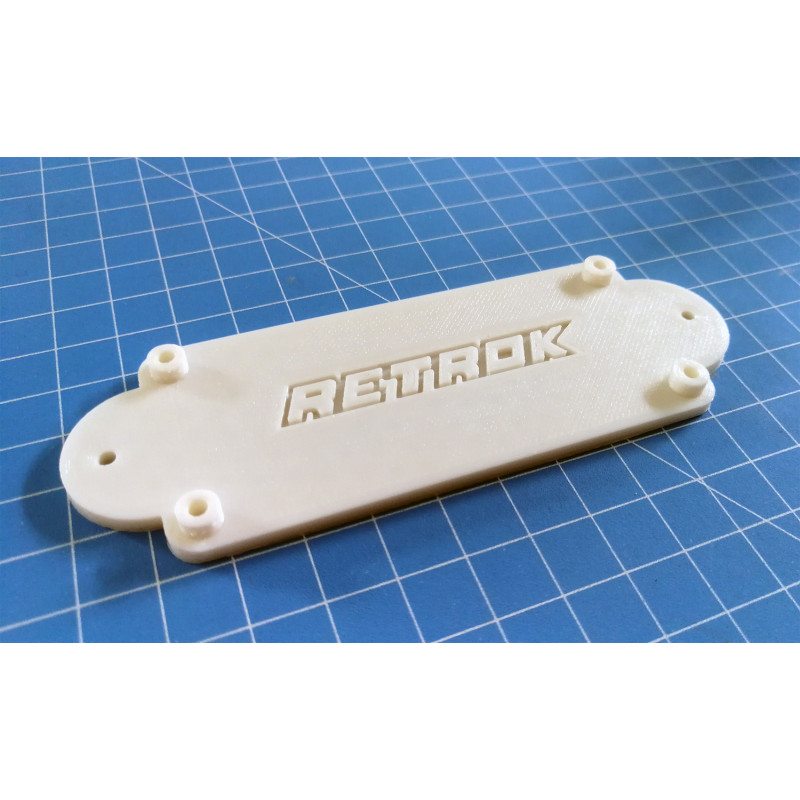

1 piece - Fixing base RetroK for the controller, useful for fixing the board to furniture, bartop ..

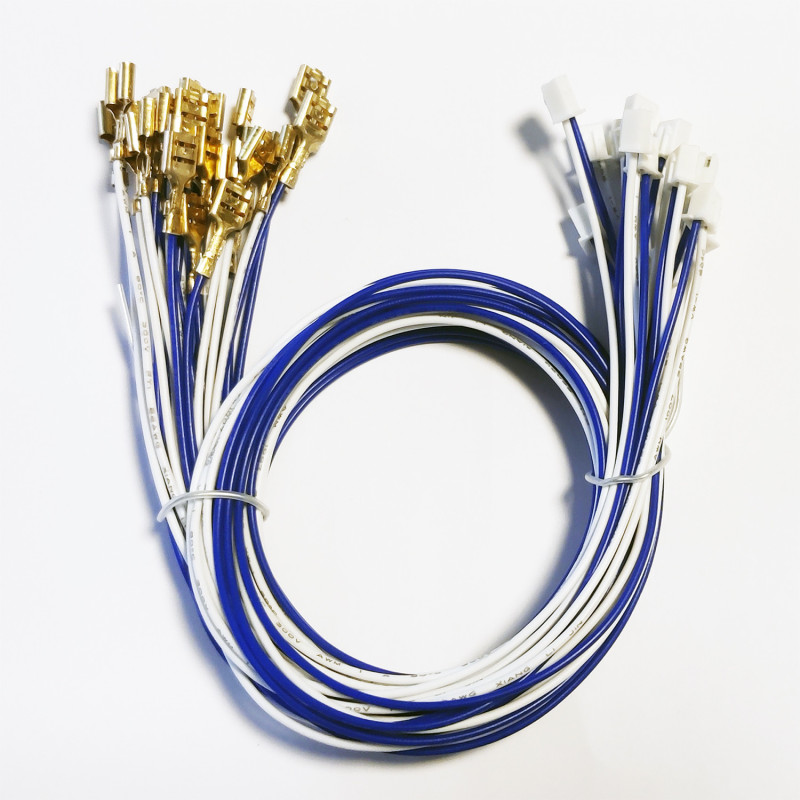

10 pieces - Button Cables with Faston 6,5mm: (for 10 buttons)
2 PIN connector side - connect to the USB Controller
Faston 6 connector side, 5mm - connect to the EDIERRE button

4 pieces - Joystick cables with 6,5mm Faston: (for 1 Joystick)
2 PIN connector side - connect to the USB Controller
Fast connector side on 6,5mm - connect to the Micron of the Joystick EDIERRE (C - NO)

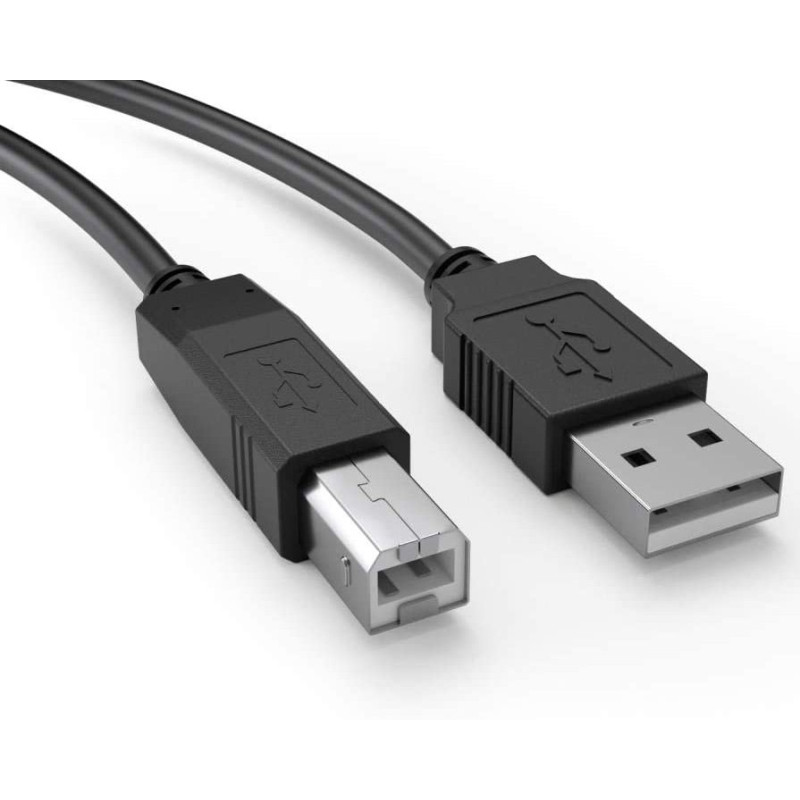

1 piece - Usb cable type A-B of 2 meters
