Case VESA Raspberry PI4 - Case and Fan with VESA 100x100

€15.99
Tax included

Volume discounts

Quantity Unit price You Save
20 €15.67 Up to €6.40
50 €15.36 Up to €31.72
100 €15.07 Up to €92.00
500 €13.57 Up to €1,210.00
Quantity
Non disponibile



100% Availability



Shipping in 48/72 h with Express Courier

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

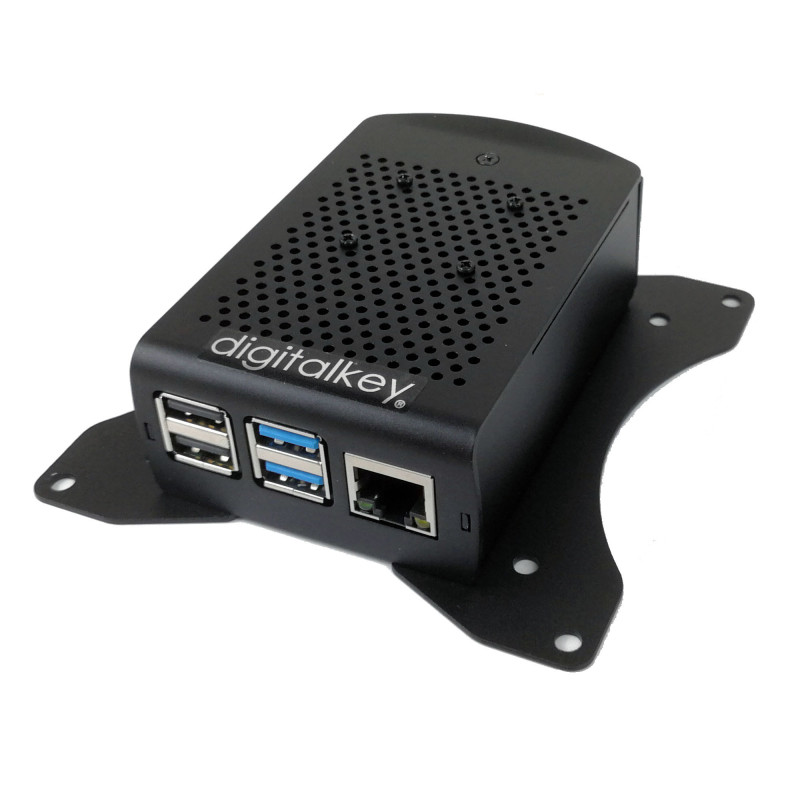

Case for Raspberry completely in Aluminum - Robustness and dissipation guaranteed .

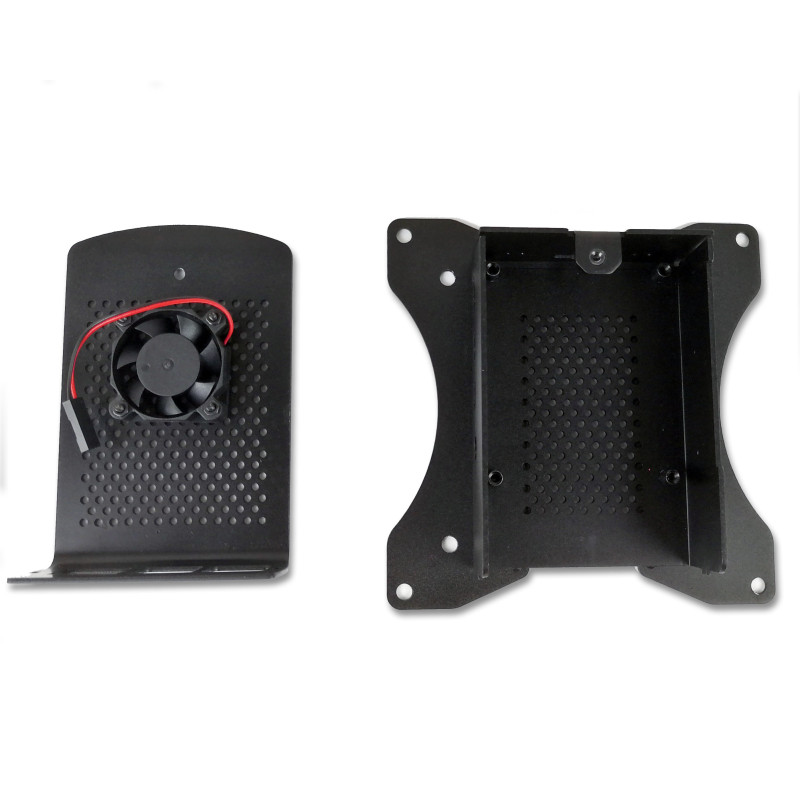

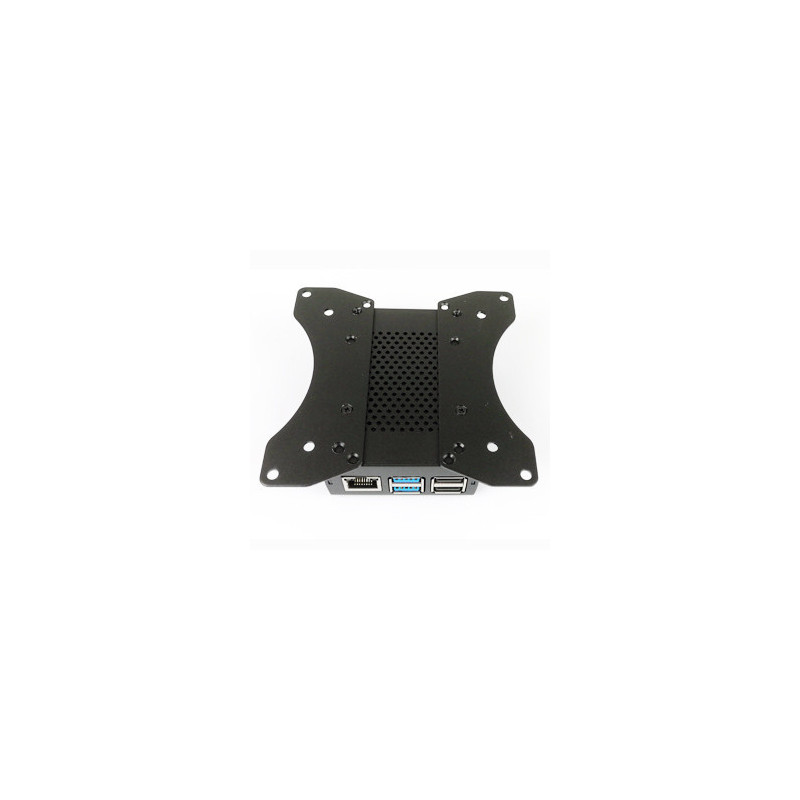

Including 2 removable brackets that allow VESA 100x100 and 75x75 fixing .
This way you can fix the Raspberry to a monitor that has holes at 100 or 75mm. < / span>
Or even to a piece of furniture, cabinet for RetroPie or other for greater stability.

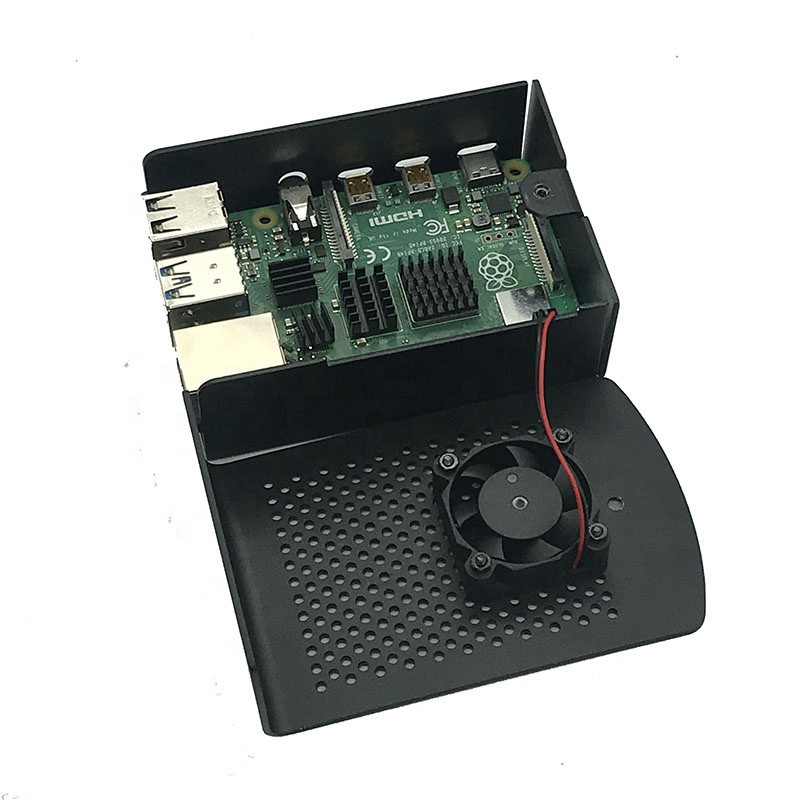

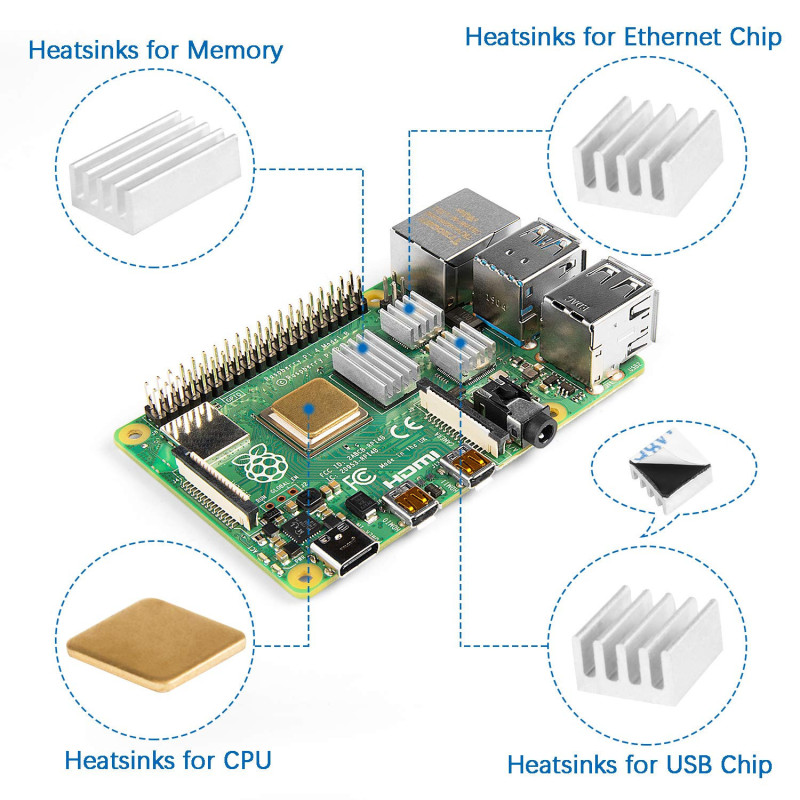

Including heatsinks and CPU Cooling Fan applied to the case - Powered by GPIO 5Vdc

Connect the Pins to the Raspberry in this way:

  • Max Speed ​​- Connect the cable to the 5V using Pins 4 (Red) and 6 (Black).
  • Min. Speed ​​- Connect the cable to the 3V using Pin 17 (Red) and 20 (Black)

Compatible with the following Raspberry: < / strong>
- Raspberry PI 4

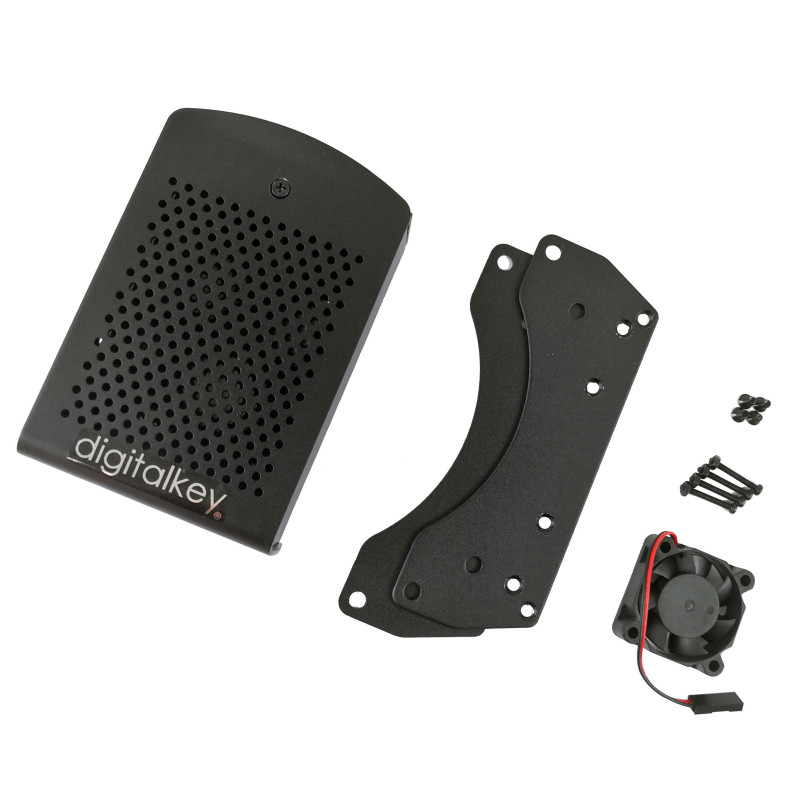

Complete package of:

  • Alloy Case Top
  • Bottom Alloy Case
  • 5Vdc Cooling Fan

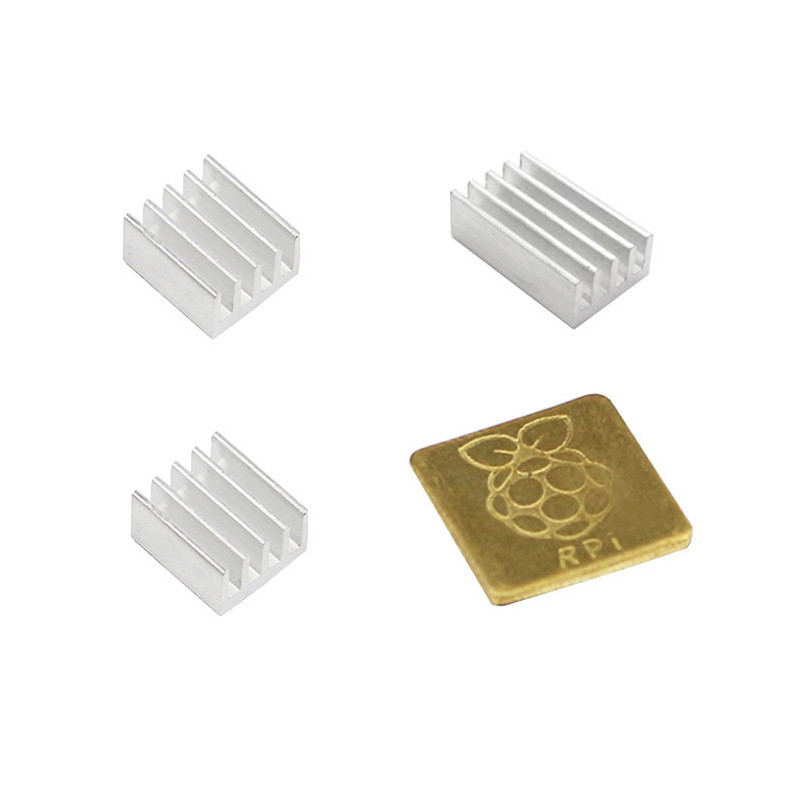

  • Set Heatsinks
  • Set x8 countersunk screws
  • x2 removable brackets

DK-XERCASE.VB100PI4
