Zero Delay Controller with Wiring and USB Cable for Arcade and Sanwa Pushbuttons

To use these controllers with the EDIERRE pushbutton, the Fastons of the wires must be replaced, using the size 6,5mm -
Modification by the buyer or see Specific kit

Card Compatible with Sanwa, Baolian and many other buttons and joysticks, NOT luminous, which have SMALL 3mm faston contacts
RetroK USB Controller with Fixing Support and Harnesses for Joysticks and Arcade Buttons
Allows the connection of Buttons and Joysticks to a PC or Raspberry with Retropie Recalbox Batocera System etc ...

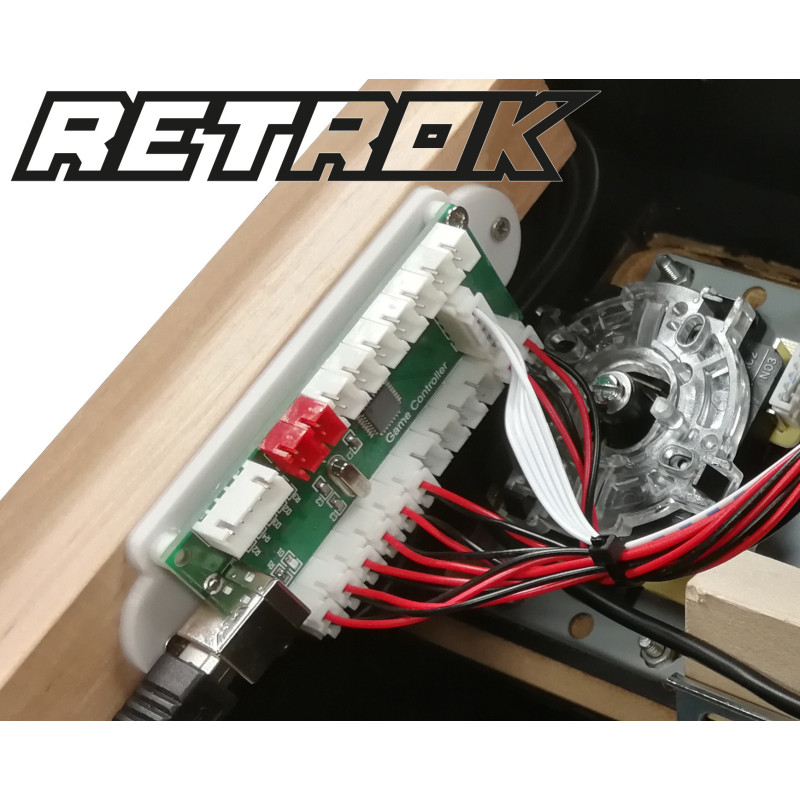

Included Fixing Support RetroK 3D printed to place the board on Bartop and Cabinets, Gamepad Homemade

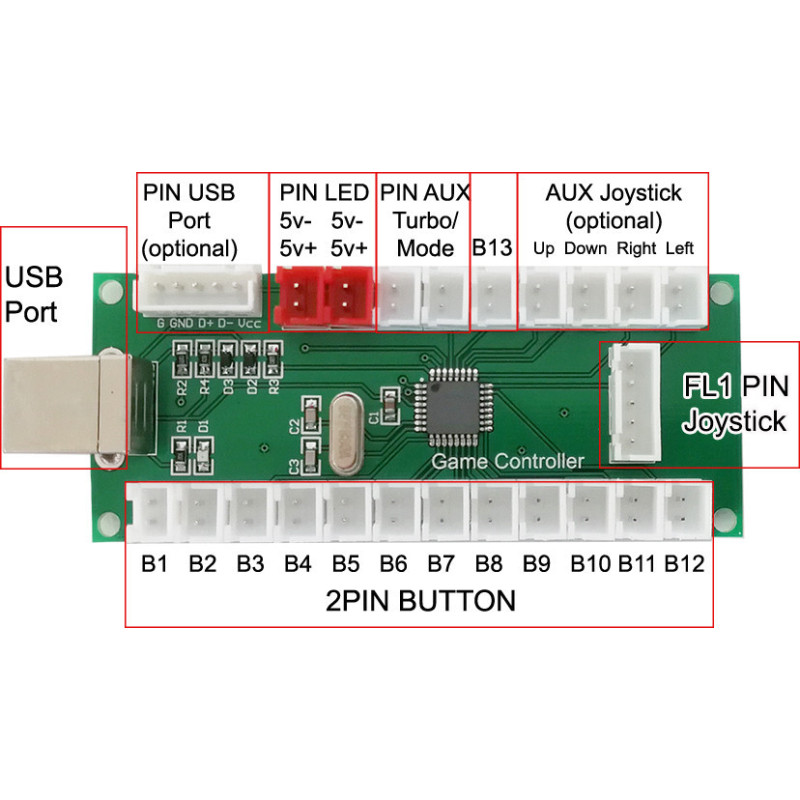

Use ONE controller per seat. By station we mean a Joystick / Buttons Player set The buttons must be connected to PINs B1 to B12, indifferently. The possible second Controller must have the wires connected in the exact same way
The configuration must then be carried out from the menu of the system used, Retropie or Recalbox or other.

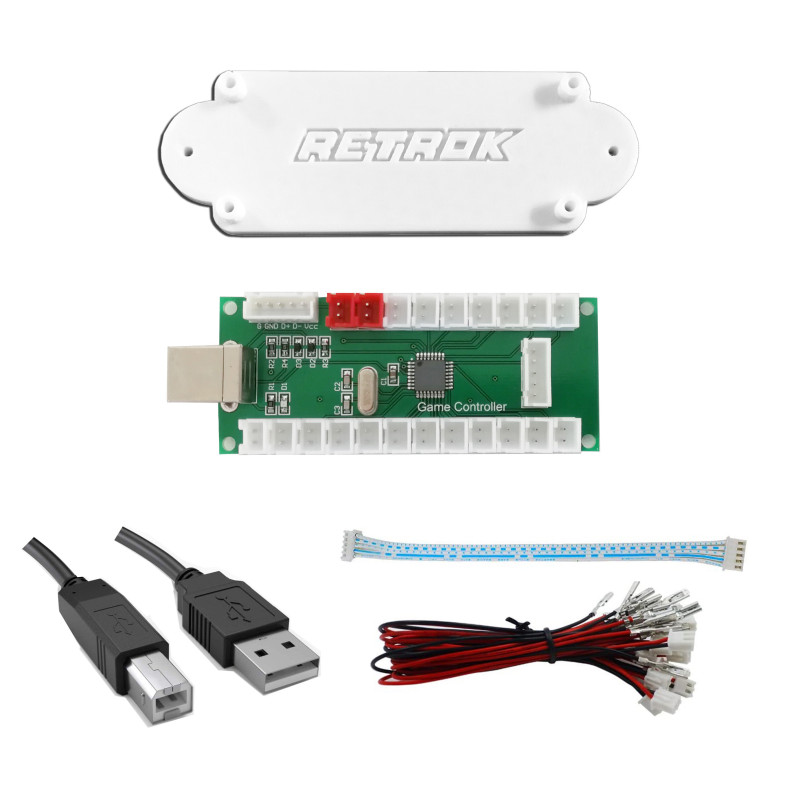

Set contents:
1 Scheme of the connection to the controller

1 piece - Controller Board USB (Board Encoder Zero Delay) Controller suitable for any operating system, no drivers required. It will be automatically detected by Windows and Linux systems and Raspberry systems with Retropie Recalbox Batocera

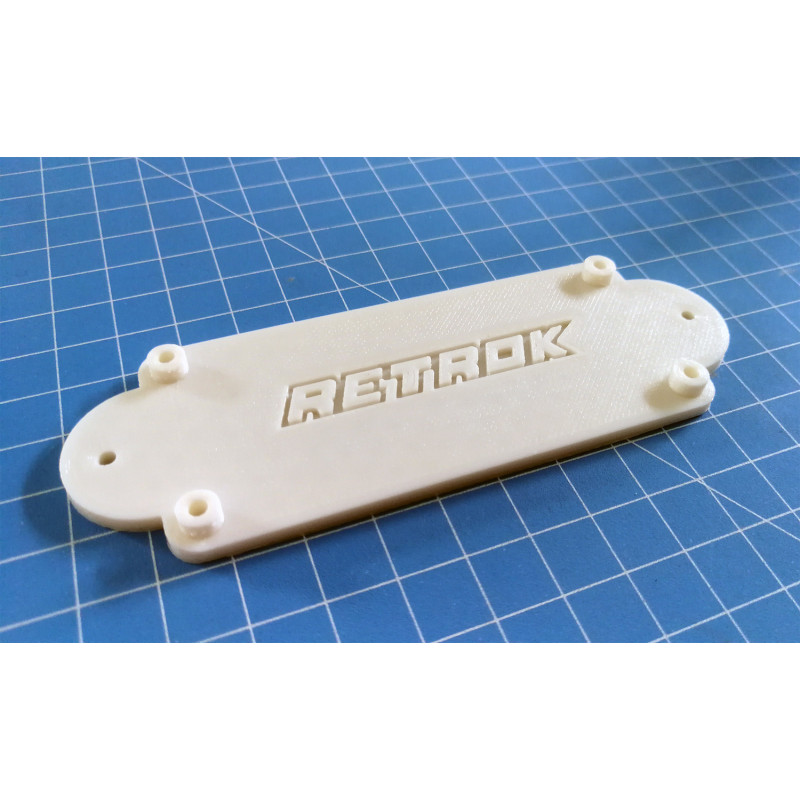

1 piece - Fixing base RetroK for the controller, useful for fixing the board to furniture, bartop , gamestick etc ..

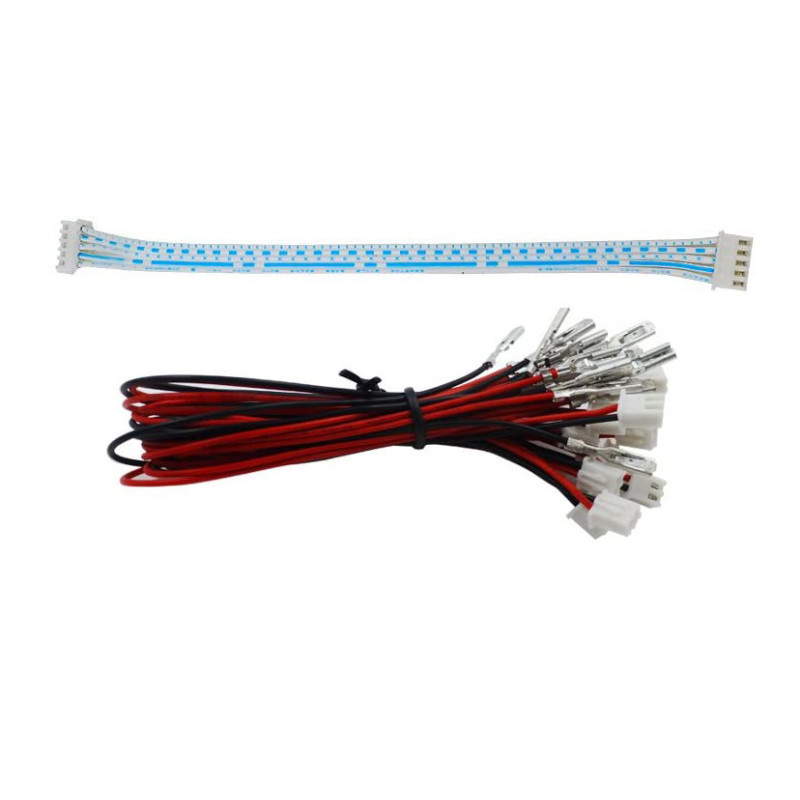

10 pieces - Button Cables with 3mm Faston:
2 PIN connector side - connect to the USB Controller
3mm Faston connector side - connect to the Arcade button

1 piece - Flat Cable Joystick with 5 PIN Connector for Joystick - connect from Joystick to USB Controller

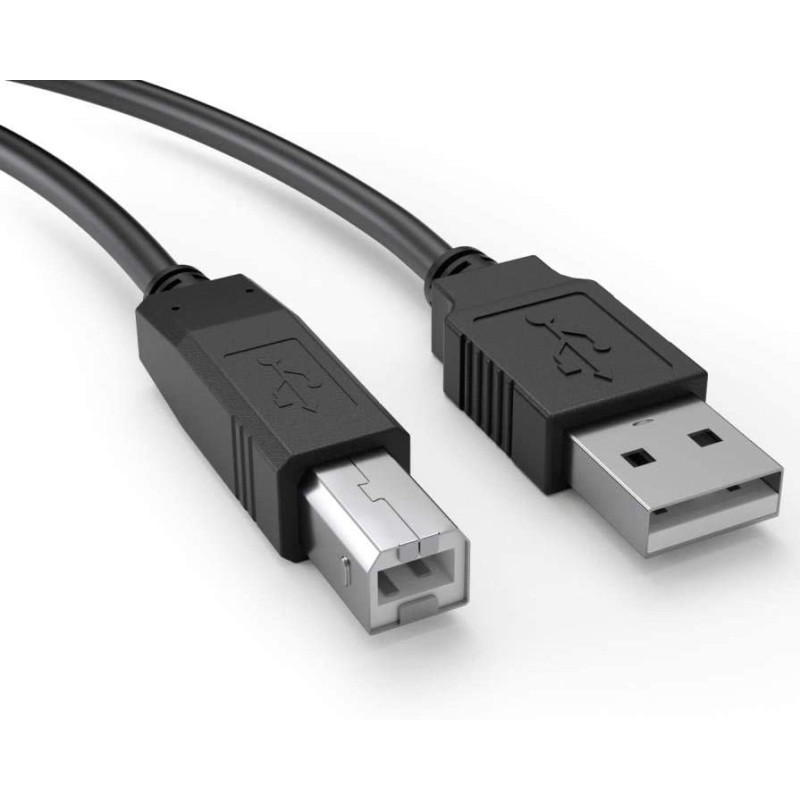

1 piece - Usb cable type AB of 2 meters
