Fan Hub PWM Control Speed Fans - for add 10 Fans
Shipping in 48/72 h with Express Courier

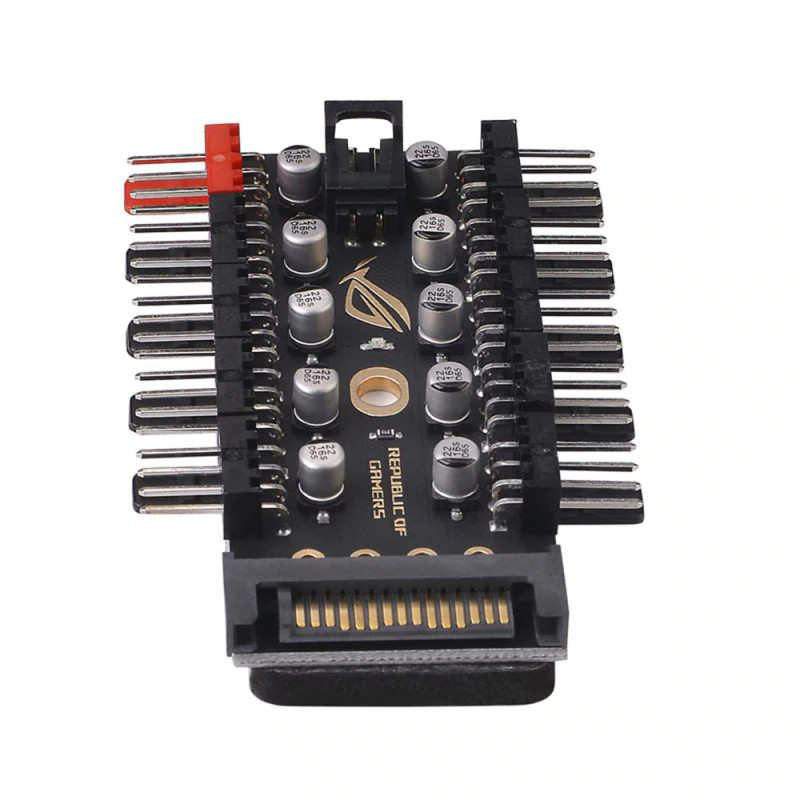

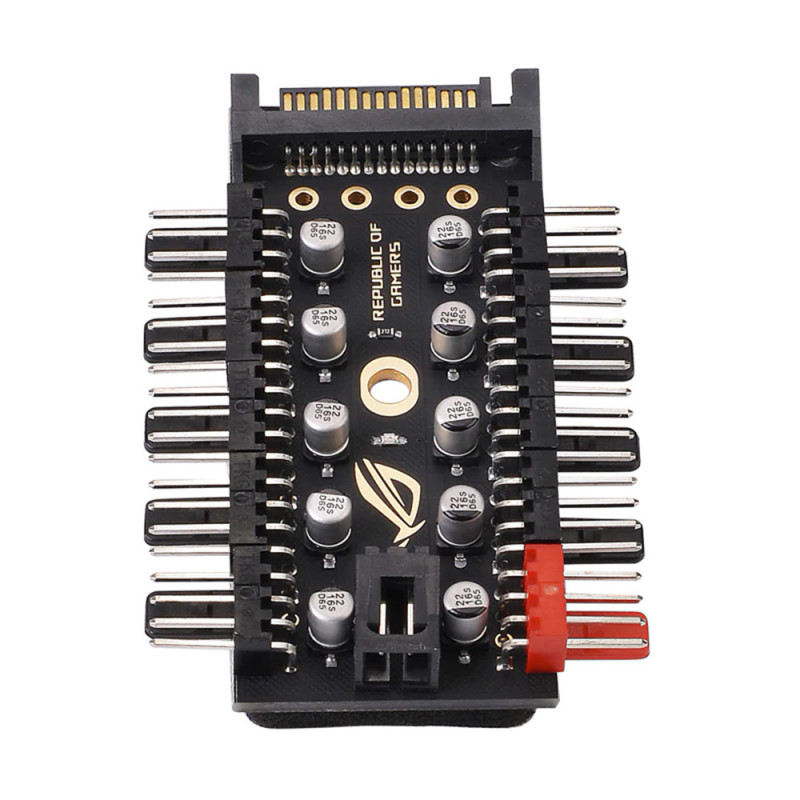

Card to connect 10 PWM fans to the PC.
Connection of fans with 4 Pin - for fans with PWM Speed Adjustment.
Also suitable for 3 PIN fans (they will work at maximum speed )

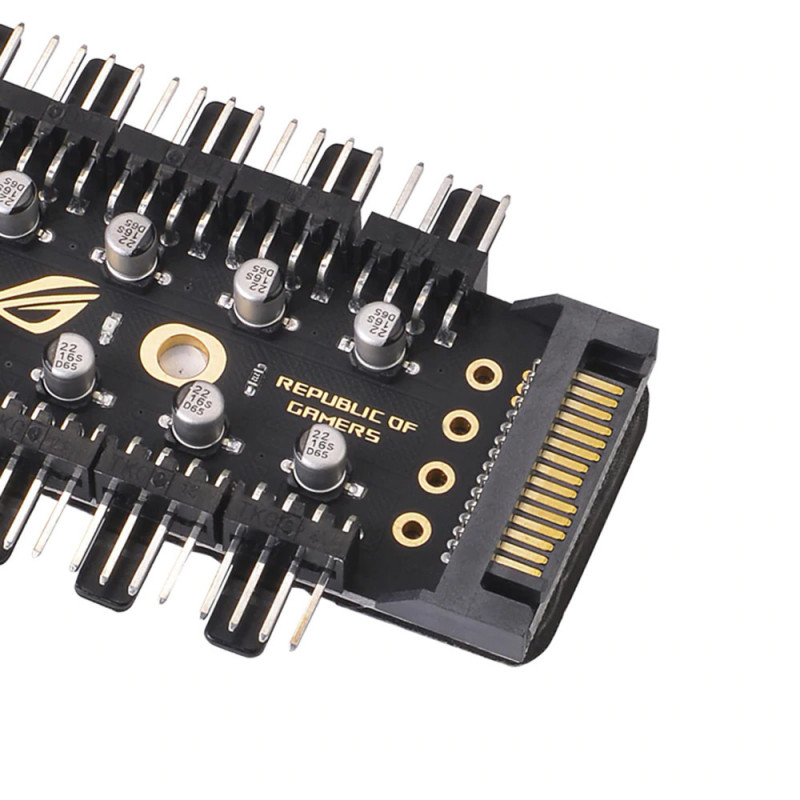

The power supply of the FAN HUB and all the fans takes place from the Sata connector
There are two possible modes of use according to personal preferences:
1- PWM regulated fans via motherboard software:
Connect the supplied cable to a 4PIN PWM connector on the motherboard, then connect the fans to the FAN HUB
Using the proprietary software of the motherboard, you can adjust the speed of ALL the fans connected to the FAN HUB at the same time.
2- PWM automatic regulation fans with CPU temperature:

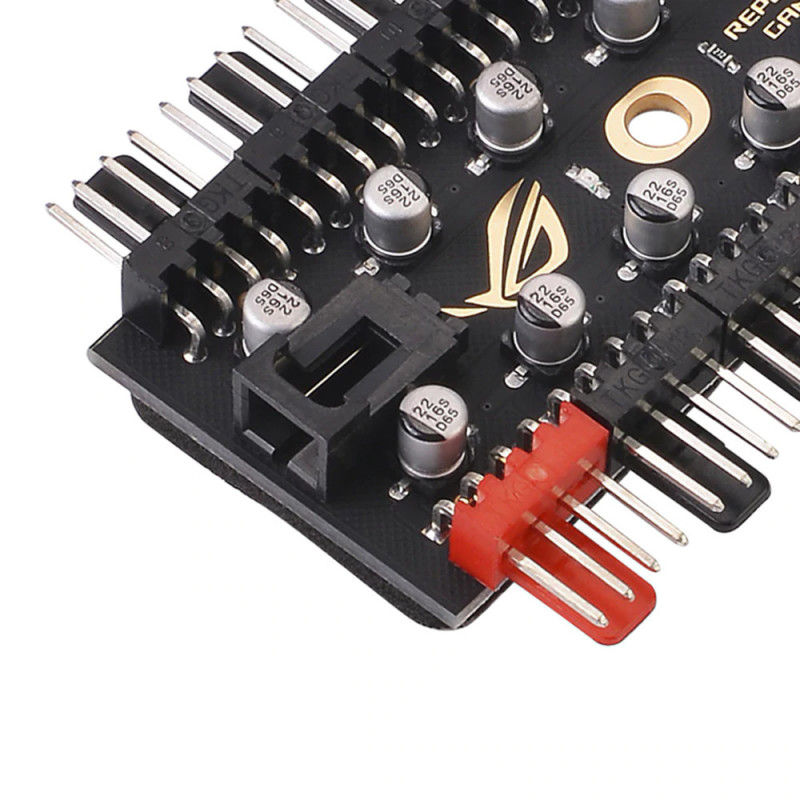

With the supplied cable, connect the FAN HUB to the CPU connector in the motherboard, then the CPU fan to the FAN HUB in the CPU-5 connector (red)
The motherboard au tomatically it will adjust the speed of ALL the fans connected to the FAN HUB at the same time, as if they were those of the processor.

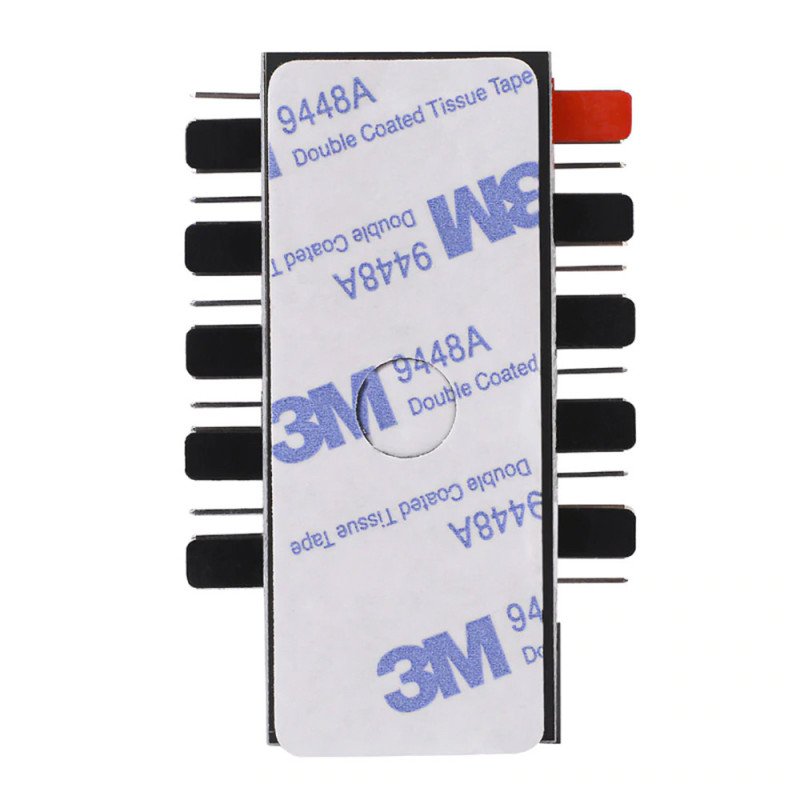

There is a 3M adhesive for convenient fixing on a PC or other.
- FAN HUB PWM

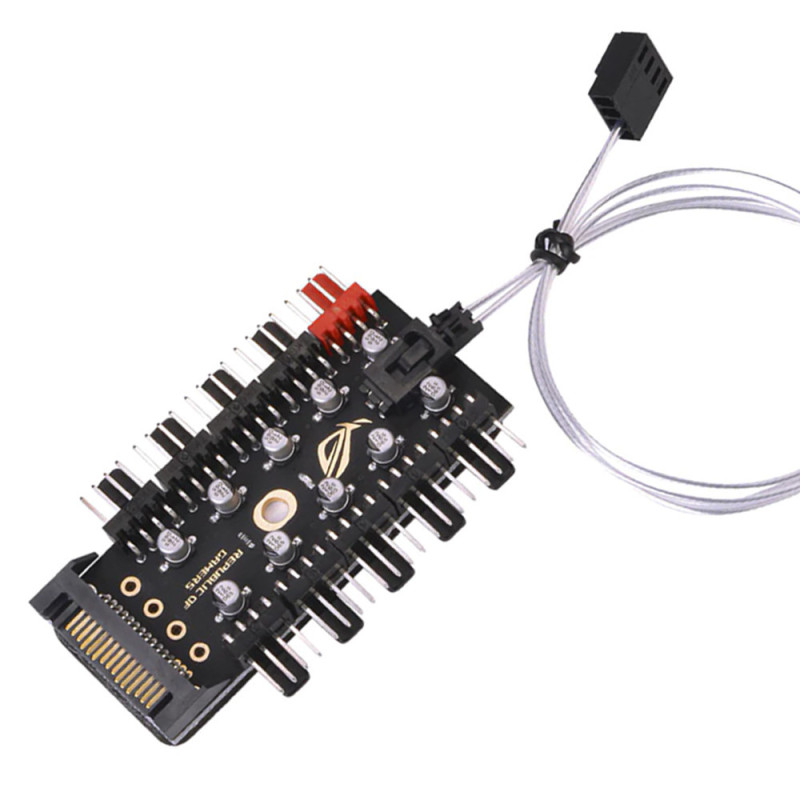

- 4 PIN cable
- Adhesive for fixing
Make the connections with the PC turned off and check the wiring. Check the absorption of the components and that there are no overheating.
We do not undertake the burden of reimbursing failures resulting from breakages or malfunctions of components other than those sold by us
