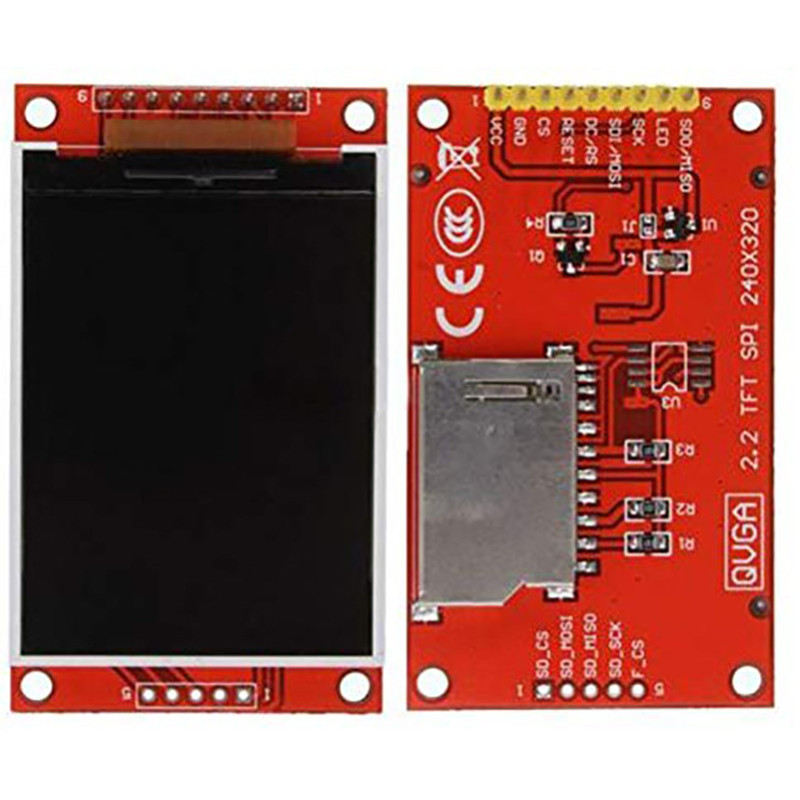

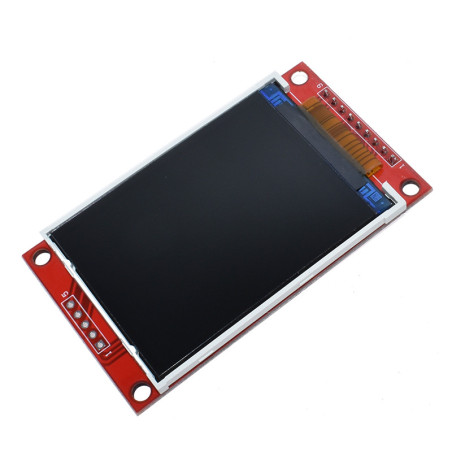

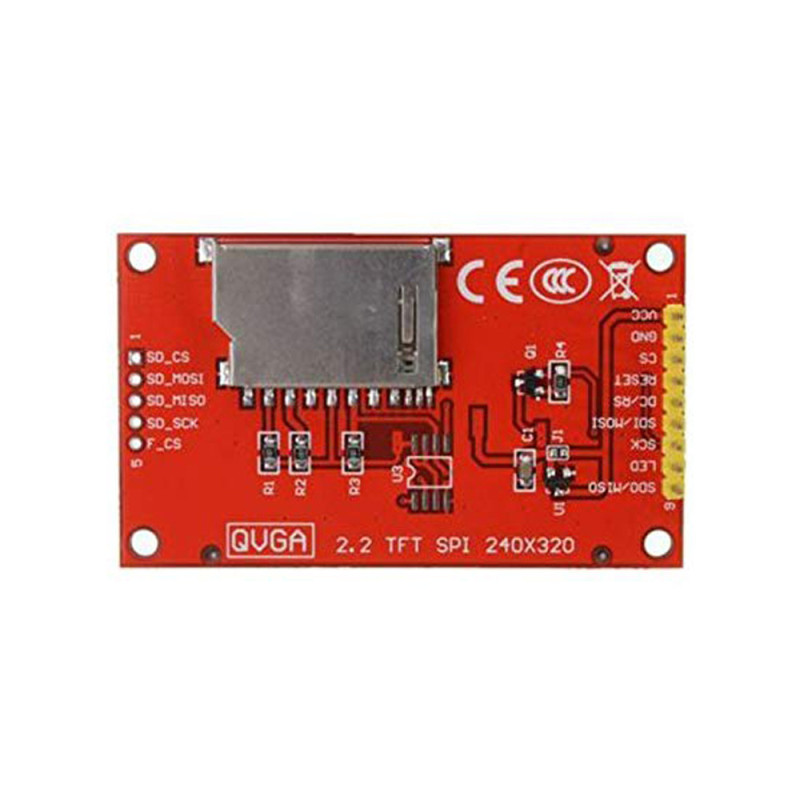

Display 2.2 Inch TFT 240x320 controller ILI9341 SPI interface Raspberry Lcd

€23.96
Tax included
Quantity



100% Availability



Shipping in 48/72 h with Express Courier



Worldwide Shipping

2.2 inch QVGA 240 * 320 non-touch display monitor
Support serial SPI mode, 4-wire SPI interface, only requires 4 IO from your GPIO.
Compatible with all Raspberry Pi and Arduino

Features
- Type: No Touch Screen
- Interface: Serial SPI - Size: 2.8 inches
- Active surface : 33.84 x 45.12 mm.
- Resolution (dots): 240 RGB x 320 dots.
- Driver element: a-Si TFT active matrix
- Pixel arrangement: band vertical RGB
- Driver IC: ILI9341.
- Number of LEDs: 4 LEDs.
- Backlight: White LED.
- Color depth: 262K / 65K.< br /> - Total size: 40 x 55 x 2.35 mm.

Package Contents:
- Display 2.2
- Connection manual< /p>


DK-TM022HDH26
