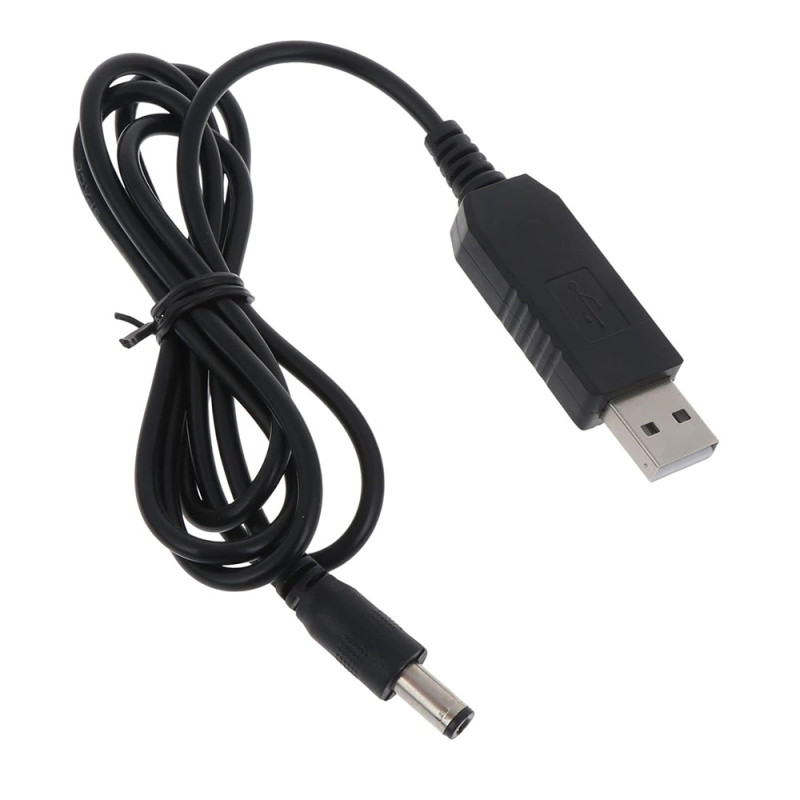

StepUP USB cable voltage converter from 5V to 12V 5.5mm connector

USB voltage converter 5v to 12v - Output current MAX 12W (1A)

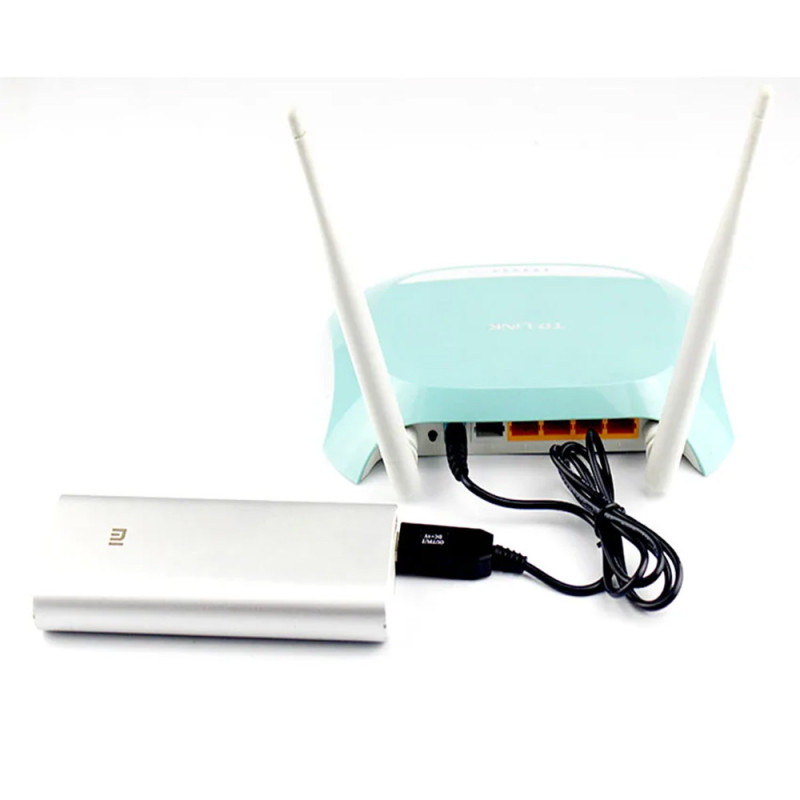

For cameras, routers, stepper motor, table lamp, speakers, Bluetooth compatible headphones, fan , LED light and other devices.

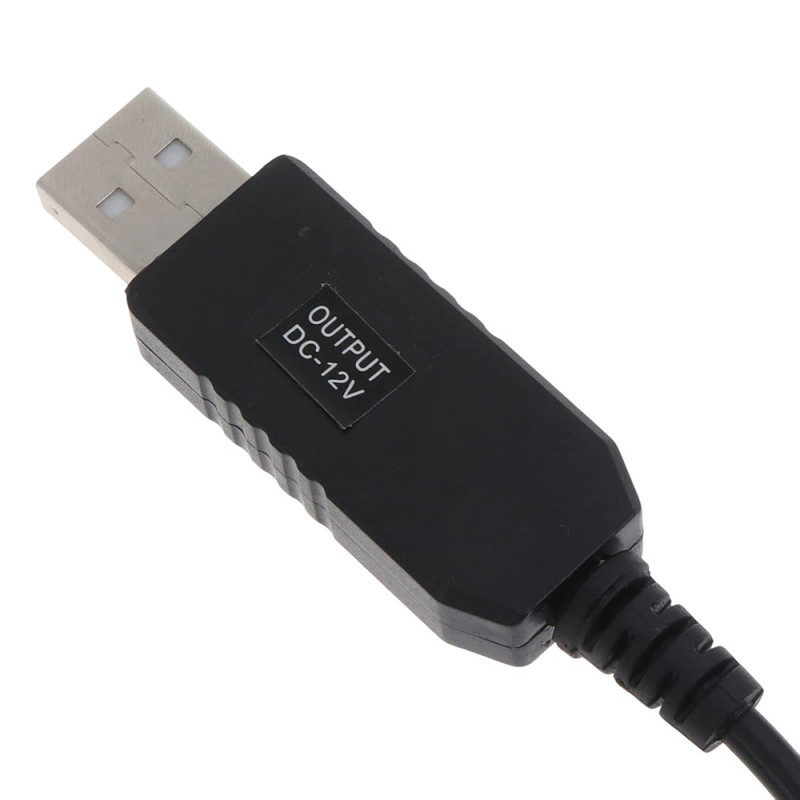

USB A male Input: 5V; Connector output: 12V.

ATTENTION:

Being a particular item, it must be used with a minimum understanding of electricity. Some ideas:

- if you connect the StepUP to a PC port, the USB 2.0 (black) delivers a maximum of 0.5W. At the stepup output this is reduced to 0.2W

- if you connect the StepUP to a USB power supply, do not exceed the load of 12 Watts, the converter will not support it

Specifications:
Input voltage on USB side: DC 5V
Output voltage on JACK side: DC 12V
Output current: Max . 1A (depends on source)
Conversion efficiency: Max. 92%
Switching frequency: 65KHz
Output waveform: <30 mv="" br=""> Operating temperature: -45 to + 85 ° C

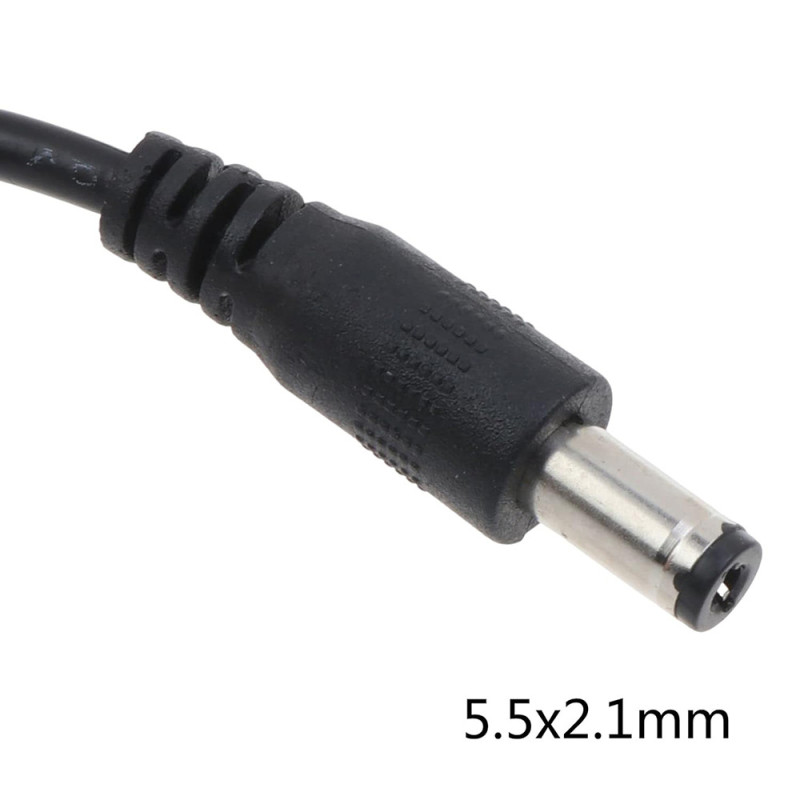

Connector 5.5x2.1mm
