ON OFF Illuminated Rocker Switch 220V - Hole 20 mm

€3.95
Tax included
Quantity



100% Availability



Shipping in 48/72 h with Express Courier



Worldwide Shipping

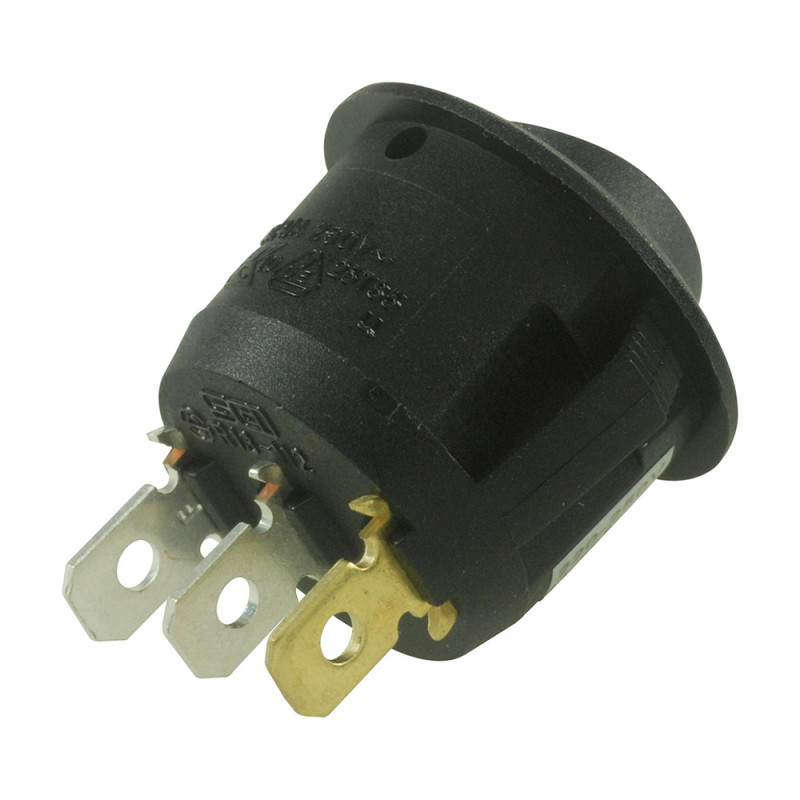

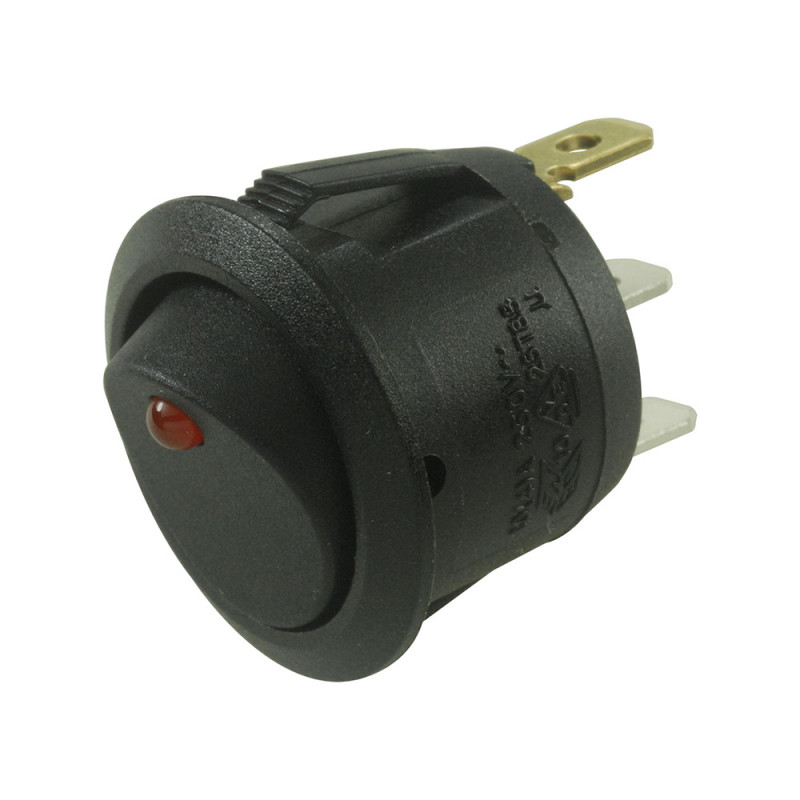

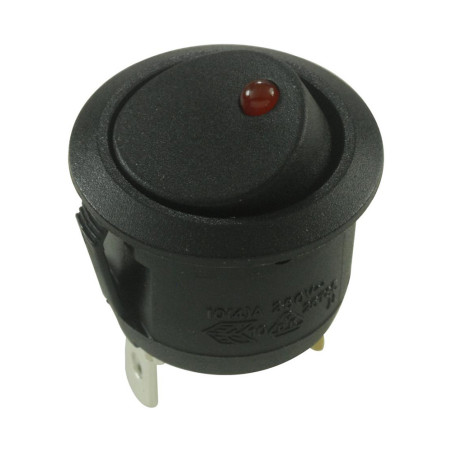

R13-112B9-02-BBR-0A is a SPST red illuminated rocker switch with ON-OFF operation and panel mounting.
The terminals can be soldered or with 5mm Faston connectors

Red Led indicator in 220V
Connect terminal 3 to Neutral
Connect terminal 1 or 2 to the Phase (if you always want the light on or with the switch on)

Technical Characteristics:
220V Red Led Lighting
Normally Open ON-OFF Contact - SPST
Contact current Max 10A
Contact voltage Max 250V
Insulation resistance:> 100MR (500VDC between open contacts)
Contact resistance: <100mr 5v="" 1adc="" br="">


R13-112B9-02-BBR-0A
19 Items

Data sheet

Diametro
20mm
